Super DAD Digital detector

Ease and speed of fault finding with a thumper have been greatly enhanced with the addition of the Super DAD to the A-Tronics-Europe line. The Super DAD conveys more information about the fault location, and faster, with the addition of new microprocessor controlled electronics that provide bright, easier-to-see-and-read signals - day or night. Instead of dial gauges to indicate the ballistic impulse of the thumper wave, the Super DAD provides yellow bar graph LED that is fast and easy to see, even in darkness. Additionally, direction-to-fault and centering -on-fault are now indicated by 2 bright red and green LED's.

Features

Super DAD features:
l	Basic DIRECTION-TO-FAULT, with centering ability
l	Time-based distance to fault, triggered by ballistic impulse (Magnetic thumper wave) to eliminate false tripping due to background noise.
l	FAULT DEPTH indication
l	A-T Ballistic Impulse LED bargraph display.
l	Direction to fault indication (Super bright LED's).
l	Audio output limitation: Automatic ear protection for the operator, even if a microphone is dropped.

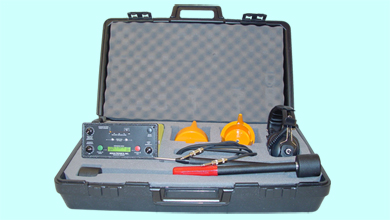

Super DAD Package contents:
2	Earth probe Microphones.
2	3 Legged tri-pods
2	Extension pipes
2	Microphone Cables
1	Stereo Headphones - High quality and comfortable .
1	Foam lined carrying case.
1	Instruction Manual.

Super DAD accessories:
l	SP100 Stirrup Probes
l	Stereo headphone
l	Ground contact microphone cables (2 each)
l	Neck strap
l	Earth probe microphone spikes (2 each)
l	Earth probe microphone (2 each)
l	3 legged tri-pods (2 each)
l	Extension pipes (2 each)
l	Super DAD electronics
